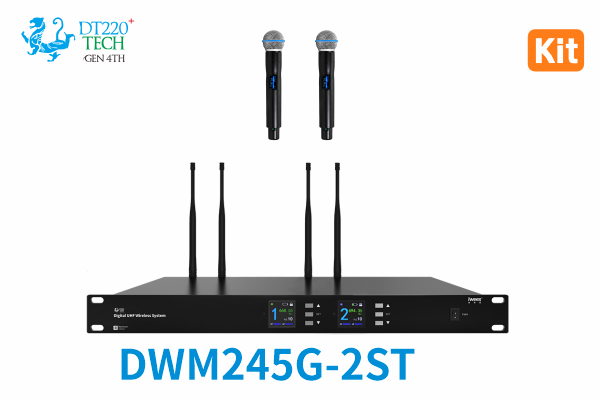

[2026] Digital UHF Wireless System - 2CH Handheld MIC Kit [ST]
❤ Add to collection

[2026] Digital UHF Wireless System - 2CH Handheld MIC Kit [ST]

Upgrade with new model of multi-channel receiver. Suitable for Stage scenarios.


$0.00
$0.00
$382.00-505.00
$382.00-505.00
Shipping Weight [Related with size]:0.000KG
Channel：
Freq. Band：
Capsule：
Quantity:
Buy Now
Add to Cart
Product

Upgrade with new model of multi-channel receiver. Suitable for Stage scenarios.



  DWM245G-2ST-5359/6470

   Digital UHF Wireless System  - 2CH Handheld MIC. Kit [Stage]


Application Scenarios

1. High class stage scenarios.


Characteristic

▪ Based on the "DT220 TECH" digital U-band wireless audio technology, it has the characteristics of stage performance sound quality, anti-interference, anti crosstalk, high fidelity, high signal-to-noise ratio, low background noise, and excellent wireless transmission distance.

▪ Effective wireless transmission distance of up to 90 meters, with main+standby mode ture diversity.

▪ Ultra low power consumption, battery life>7 hours (lithium battery), standby time>20 hours.

▪ Adopting the patented technology of "mixed power", it can be powered by a 3.7V 14500 lithium battery or a 1.5V AAA No. 5 battery.

▪ Upgrade with new model Receiver of DT48R-2ST, which is support for main+standby mode ture dervisicy.

▪ Provide 3 model of capsule for the MIC: Standard / M47 (refer to SM58) / M48 (refer to Beta58)


Parameters


Communication Parameters



Freq. Band

530~590Mhz / 640~700Mhz There are differences according to regions


Modulation Mode

PSK


Transmission Distance

>90m (Related to wireless environment）


Transmission Concurrency

24CH / 60Mhz Band


S/N

>112dB


Dynamic Range>112dB

Backgroup Noise<10uV

Freq. Response

20Hz-20KHz


Transmission Delay

＜4ms


Distortion T.H.D

<0.03% （@1KHz）


Sound Parameters



Mic Type

refer to the capsule MIC.


Sensitivity

-


Freq. Response

-


Output Impedance

-


Directivity

-


Physical and Electrical Indicators



Power Supply

14500 Li battery *2  or AA battery *2 [Hybird Battery Tech]


Power Interface

-


Endurance

>7h（@14500 battery); >4.5h (AA battery)


Size

L=255mm；R=37mm / 230g(without battery)


Launch Connector

XLR Interface


Function

Region Infrared.


Questions Frequently Asked

1. When charging lithium batteries with poor performance, their step-down circuit will interfere with the performance of the receiver.

2. When multiple devices are used simultaneously, improper frequency setting can easily lead to performance degradation due to intermodulation interference.


Notes

  1. This model of product is recommended to be used in conjunction with iweex ® Unpredictable ® Brand, same technology platform, model DTR22X ("X" is any number) receiver device.

  2. Please use a legitimate and qualified product battery! Fake and inferior batteries may cause leakage or even explosions. If any abnormalities are found in the battery, please stop the equipment immediately and replace it to avoid the risk of explosion or equipment damage!


Documents

     Please refer to the related components.



Standard Accessories：

=========================

Bodypack Transmitter *2

2 Channels Receiver *1

Antenna *2 (base on frequency band)

AA Battery *4

220V/12V & 1A Power Supply *1

Storage package *1

Manual *1

Qualification certificate *1
