Digital UHF Wireless Handheld MIC [STD/M47/M48 Capsule]
❤ Add to collection

Digital UHF Wireless Handheld MIC [STD/M47/M48 Capsule]

Based on the DT220 TECH platform, suitable for conference speeches and small performances. Supports SM58 / BETA58 / V7 capsules.





$0.00
$0.00
$107.00-150.00
$107.00-150.00
Shipping Weight [Related with size]:0.000KG
Freq. Band：
Capsule：
Quantity:
Buy Now
Add to Cart
Product

Based on the DT220 TECH platform, suitable for conference speeches and small performances. Supports SM58 / BETA58 / V7 capsules.






DWM245

Digital UHF Wireless Microphone (2025 Edition)

[STD / M47 / M48 Capsule]



Application Scenarios

1. Pick up and forward sounds from various sound sources on stage (instruments, harmony, chorus);

2. High-end meeting scene.


Characteristics

▪ Based on "DT220 TECH" digital U-segment wireless audio technology, it features stage studio-level sound quality, anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, low noise floor, and excellent wireless transmission distance.

▪ Digital U-segment technology, the effective wireless transmission distance is up to 70 meters, effectively avoiding intermodulation interference.

▪ Ultra-low power consumption, battery life >7 hours (lithium battery), standby time >20 hours.

▪ Using "hybrid power" patented technology, it can be powered by 3.7V 14500 lithium battery or 1.5V AAA AA battery.

▪ Used with a receiver with built-in lithium battery, it can be easily used outdoors.

▪ Supports SM58 / BETA58 / V7 capsules. or GAODIMIC's M47 / M48.


Parameters


 Communication parameters



Transmission band

510~698MHz (varies according to different regions)


Modulation

PSK


Effective Bit

20bit


Sampling Rate

48Khz


Transmission distance

>100m MAX (related to transmitter model, RF signal absorption, reflection, interference and performance options)


Occupied bandwidth

<200KHz (parameter configuration varies according to different regions)


Frequency response

20Hz-20KHz


Transmission delay

＜4ms


Signal-to-noise ratio

112dB (different depending on the transmitter)


Distortion T.H.D

<0.03% （@1KHz）(different according to different transmitters)


Phase representation

+30°  ~ -60°


Backgroud Noise Voltage

<12uV


Function

Battery, built-in antenna


Microphone index



Type

Dynamic microphone


Sensitivity

STD: 0°-71dB±3dB (0dB=1V/ ubar at 1KHz)

M47: -56dB±3dB (0dB=1v/pa at 1KHZ)

M48: -56dB±3dB (0dB=1v/pa at 1KHZ)


MAX SPL

STD: -

M47: 138dB THD <3% ( SPL at 1KHZ)

M48: 138dB THD <3% ( SPL at 1KHZ)


Frequency response range

STD: 100Hz～10kHz

M47: 50HZ-15KHZ (-6dB at 1KHZ)

M48: 50HZ-15KHZ (-6dB at 1KHZ)


Output impedance

STD:600Ω ± 30% （@1KHz)

M47: 300Ω±30%

M48: 300Ω


Directivity

STD: Single direction

M47: Cardioid

M48: Super-Cardioid


Physical and electrical indicators



Power Supply

14500 lithium battery (3.7V) *2 or AA size 5 battery (1.5V) *2 [Hybrid power technology]


Battery life

>10h (lithium battery) / 6h (AA battery)


Size

L=252mm；Rmax=52mm


Weight

383g(with Capsule and Battery)


Common Problems

1. When using a rechargeable lithium battery with poor performance, its voltage reduction circuit will interfere with the performance of the receiver.

2. When multiple sets of equipment are used at the same time, if the frequency point is set improperly, it is easy to cause performance degradation due to intermodulation interference.


Capsule Figure

M47

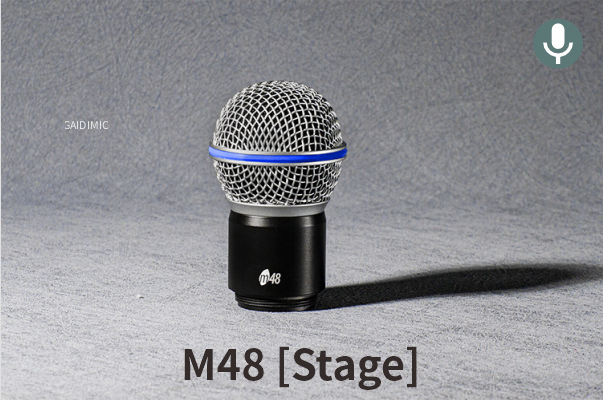

M48

Notes

  1. This model of product is recommended to be used with the iweex® brand, the same technology platform, and the model is DTR22X ("X" is any number) receiver device.

  2. Please use batteries from regular manufacturers with qualified products! Counterfeit batteries may cause leakage or even explosion. If any abnormality is found in the battery, please stop the equipment immediately and replace it to avoid the risk of explosion or damage to the equipment!

  3. When replacing a capsule with another brand, an electric current sound may occur due to electromagnetic wave shielding performance issues, and you may need to lower the RF POWER.


Documents

1_Manual_CNEN_Universal_ (DTT245&DWM245)_Digital UHF Wireless System - Handheld Tx & MIC_20250824


Standard Accessories：

=========================

14500 Li-battery *2

Storage package *1

Manual *1

Qualification certificate *1
